High Speed Core Cutting Machine Kraft Core Cutter

Model NO.: JT-SL-2000C
Wall Thickness of Paper Tube: 1mm-15mm
Certification: CE, SGS
Condition: New
Jumbo Tube Length: 2000mm
Paper Tube Inner Dia: 50-152mm
Paper Tube Thickness: 4-15mm
Cutting Length: 10-2000mm
Cutting Speed: 60 Cuts/Min
Turret Movement Speed: 1.8 M/Min
Working Pressure: 0.6MPa
Voltage: 380V 3 Phase 50Hz
Power: 3kw
Cutting Mode: Paper Tube Turn; Knives and Axes Do Not Turn
Trademark: Jota Machinery
Transport Package: Film and Wood-Case
Specification: 4000*920*1600mm
Origin: Kunshan
HS Code: 8462391000
                            High Speed Core Cutting Machine Kraft Core Cutter
High Speed Core Cutting Machine Kraft Core Cutter


Main Parameters:
Jumbo Tube length 2000mm
Paper Tube Inner Dia 50-152mm
Paper Tube Thickness 4-15mm
Cutting Length 10-2000mm
Cutting Speed 60 cuts/min
Turret movement speed 1.8 m/min
Working Pressure 0.6Mpa
Voltage 380V 3 Phase 50Hz
Power 3kw
Cutting Mode Paper tube turn; knives and axes do not turn
Operator 1 person
Mould 2 sets
Uploading/Unloading Hand control
Dimension 4000*920*1600mm
Weight 900kgs

Specification:

Machine adopts Taida PLC(Taiwan) and Xianda HMI(Shenzhen) control system, all the parameters are displayed on the touch screen, and it runs automatically.
It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control.
It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head.
It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head.
It adopts double round blades to cutter.
It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head.
It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head.
It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components.
Paper tube clamping adopts automatic chucks.
 High Speed Core Cutting Machine Kraft Core CutterHigh Speed Core Cutting Machine Kraft Core Cutter
Certification CE,SGS, Gold Supplier, etc.
MOQ 1 set. (More than 3 sets, offer a special discount)
Perfect After-sale System Technicians can service overseas.
Prompt Reply Within 24 hours.
Yearly Production Capacity More than 100 sets.
Packing Details With flexible wrapping and export standard wooden case.
Delivery Time Within 30 days after receipts of 30% payment, the rest 70% paid before shipping.
Terms of Payment T/T, L/C
Delivery Clause FOB Ningbo/Shanghai Port
Packaging Details High Speeding Razor Paper Sheeter Machine is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a box of tools, two pieces blade and exporting standard wooden case.

we are China Tractor Diesel Engine Supplier & Manufacturer,our Small Diesel Engine,Generator Diesel Engine,Water Cooled Engine,are good in quality and competitive in price.if you need any of them , please feel free to contact us for free .

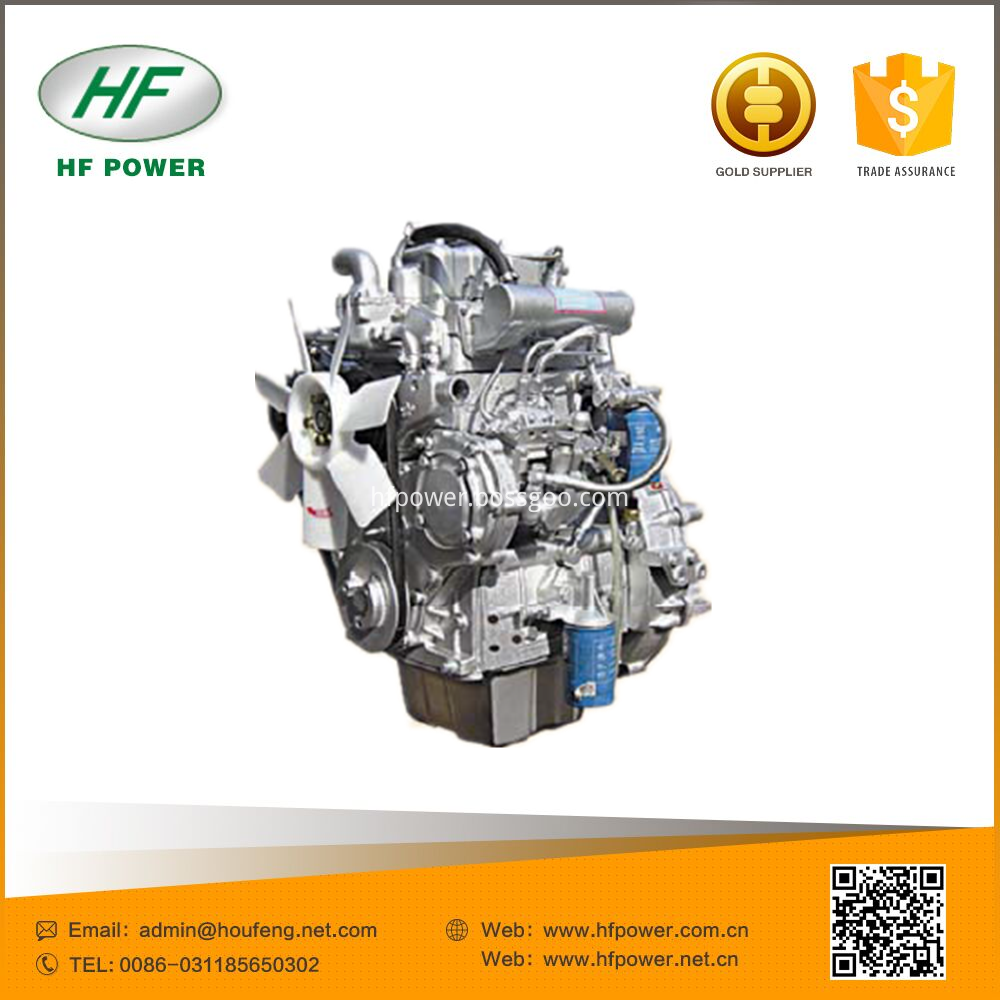

The model Diesel Engine are designed according to the use requirements and the structure features of the Marine Engine .  After we optimized the design for the matching parts, the main features of this type diesel engine are the stronger power , the bigger continuous output and the lower fuel and oil consumption . we fix the stainless pipe on this model diesel engine and adopt the Dacromet technology on the surface in order to prevent the corrosion. This diesel engine is reliable and durable . There is a small window on the sid of the diesel engine to maintain easily . Because the diesel engine came out in serial form, the matching parts are in common use, it is convenient to supply the matching parts . The flywheels power take-offs can be equipped with the outboard machinery or engine-mounted marine gearbox .The diesel engine used for marine have two kinds of configuration , one is the simple configuration, which is without a heat exchanger and a water cooled exhaust manifold , the other is the complex configuration , which with a heat exchanger and a water cooled exhaust manifold .
