European Epal/American Standard Wood Pallet Making Production Line Equipment

Model NO.: P-100
Trademark: WVT
Origin: Wuxi, Jiangsu


trust us,bring you more

WVT industries



integrity-based,quality foremost,customer-oriented,service priority



auto wood pallet production line


A) main machine :automatic wood pallet making machine

1. application field

to American-type wood pallet,European-type wood pallet,plywood pallet,wood packing board sheet etc for transportation logistics industry


2. pallet size and machine main technical parameter for auto wood pallet machine

model P -100
dimension(L×W×H) 13300mm × 5000mm × 4000mm
weight 4800KG
voltage 380V±10%, 50 Hz, 3-phase
power 25.87kw
power consumption 11KW•h/1500pcs
air pressure 5-8bar
pallet min.size 0.8m*0.8m
pallet max.size 1.25m*1.25m
customized size be available(such as 3m*1.5m etc.)
capacity 140-160pcs pallet /hour
pressing nail mode hydraulic pressure
machine moving direction horizontal
product direction adjustment auto reverse
output mode auto stacking

European Epal/American Standard Wood Pallet Making Production Line Equipment


3.machine structure feature and advantages

-instead of pneumatic nail gun(coil nail) system,
 use advanced hydraulic pressure technology to automatically fix pallet by loose nail to
 reduce work injury.
 loose nail is more cheap convenient and safe than nail gun and coil nail


-make American-type wood pallet,European-type wood pallet,plywood pallet,wood
 packing board sheet
etc.


-reduce machine breakdown
 reduce work force cost
 enhance production efficiency
 reduce worker's working intensity


-reciprocating type operation design is suitable to produce pallet with small capacity but
 different size
-
straight-through type design  is suitable to produce pallet with big capacity and
 same size


-digital operation control interface

-production process automatic transport system to delivery materials
-automatically overturn and stack pallet

European Epal/American Standard Wood Pallet Making Production Line Equipment



B) -1 auxiliary equipment : round log multiple rip saw machine

1.application
  to saw round log into small pieces

2. round log size and machine main technical parameter



model 1035 1030 1025 1020
max.cutting height 35cm 30cm 25cm 20cm
min.cutting width 40cm 35cm 30cm 25cm
min.cutting height 15cm 12cm 10cm 8cm
longest processing length 4m 4m 4m 4m
shortest processing length 90cm 90cm 80cm 80cm
total power 86kw 69kw 59kw 50kw
cooling manner cooling water+cooling air
feeding speed 3-6m/min. 3-6m/min. 4-7m/min. 4-7m/min.
speed adjustment frequency inverter
dimension 4300*1600*1600mm 4200*1600*1600mm

European Epal/American Standard Wood Pallet Making Production Line Equipment


3.machine structure feature and advantages
-high efficiency,it is 5 times faster than traditional band saw
-high production,cut one round log into 7-8pcs small wood beam only one time
-cutting round log is with even thickness,smooth,no bur
-safe closed-type design
-eco-friendly ,low noise,low electricity power consumption

-machine main body frame use superior specially processed steel ,durable use
-motor is from China famous brand
-cooling device is water cooling and air cooling,which control cooling water consumption and add effect of cooling

-use V-type automatic centered feeding system, more safe,convenient
-use frequency inverter to control speed,save more power

B) -2
auxiliary equipment :cutting machine for pallet wood beam/wood cross and feet block

1.application
  to cut pallet panel,wood beam/wood cross,pallet feet block

2. panel,wood beam size and machine main technical parameter

model C-4000
max.cutting length 4000mm
max.cutting width 200mm
saw blade diameter 400/450mm
max. Cutting thickness 110/130mm
main shaft rotatory speed 3500/rpm
main shaft diameter 30mm
main motor power 7.5kw
net weight 950kg
dimension 7300*1200*1500mm

European Epal/American Standard Wood Pallet Making Production Line Equipment
3.machine structure feature and advantages

-high efficiency,to save cost,enhance profit
-suitable for a large scale,standard production
-precise cutting is with even thickness,smooth,no bur
-automatic absorbing shavings,sawdust scraps by chimney pipe
-safe closed-type design,computer control
-eco-friendly ,low noise,low electricity power consumption



B)-3 auxiliary equipment :nocthing machine for American wood pallet beam

1.application
to notch American wood pallet beam
2. product and machine main technical parameter

type single head double head
motor 15kw 30kw
cutter material alloy(disposable) alloy(disposable)
capacity 600-800pcs/hour 1800pcs/hour
wood beam length ≤1800mm ≤1300mm
wood beam width 160mm 90mm
wood beam height 40-60mm 40-60mm
notch depth ≤45mm ≤45mm
notch width 200-230mm 230mm
weight: 400kg 1000kg
dimension 1200*1000*1200mm 2300*1300*1300

3.machine structure feature and advantages
-notch is smooth,flat,no bur
-high efficiency
-auto feeding
-for singe head machine,one time can put 20cm width wood materials(it equals to put 5 pcs with 4cm width wood material one time
-dust exhaust is bigger
-disposable alloy cutter,it is easy to change


4.photo regerence

European Epal/American Standard Wood Pallet Making Production Line Equipment

C)factory advantages

-always carry out ideas of integrity-based,quality foremost,customer-oriented,service priority

-bring you quality reliable stable product by our innovation,preciseness,professional,thoughtful,patient and quick respone

-provide installation,debugging and training service if need

-life long after sales service is availble forever
-any questions about machine,we will provide quick-response technology service on line or on site
-any parts broken from quality reason in 1 year warranty ,we also will supply spare parts replacement free of cost



D) payment terms

T/T,LC,western union or others


F) delivery  details

-delivery time: 30-45days after depositt

-delivery port: shanghai port or others,China

-package style: in wooden cases



G) contact

Mr.JagyWoo

Phone: +86 13914269364

Website: www.wvt-industries.cn

European Epal/American Standard Wood Pallet Making Production Line Equipment






trust us,bring you more

WVT industries


integrity-based,quality foremost,customer-oriented,service priority






Our Yongkang Longyin Industry And Trade company is a prefessional manufacturer of two wheel Balance Scooter, unicycle hoverboard, Electric Scooter, Kids Scooter , handheld stabilizer, and so on.

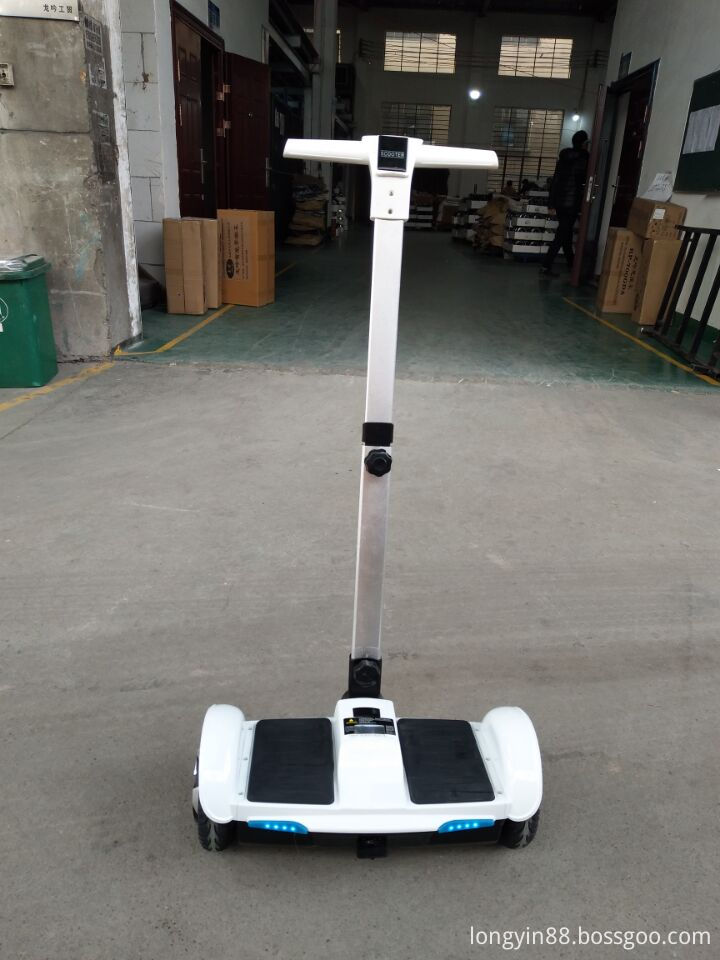

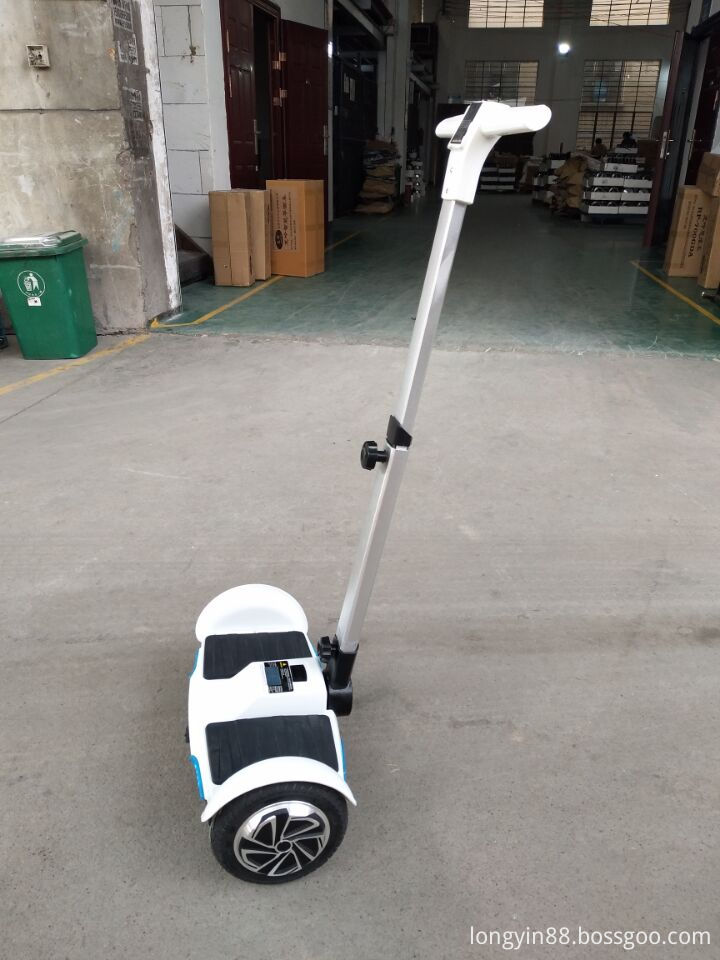

8inch  Two Wheel Electric Balance Scooter with handle is similar with Segway, you can operate handle by turn left and turn right.And more easy to learn for with handle.The max speed is about 12km/h, range is 10-15km, and max loading is 110kgs.Charger time is about 2-3hours.
